TYM · Compact

TYM 5520

Ask a dealer

no published price

TYM 5520

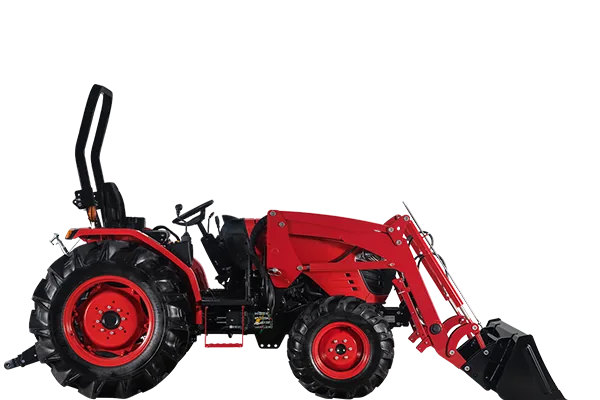

Maker's photo for this series, not this exact model — trim, wheels and cab may differ
Compact
55 hp engine · 44 PTO−20% to the shaft

The turbocharged top of the series 4 gear range: 55 hp and 44 at the PTO from the same 2.3-litre four that runs naturally aspirated at 48, in a 3,836 lb frame with 16 speeds and a 540/750 PTO. It is the closest TYM gets to a utility tractor without leaving the compact chassis.

Engine
55 hp
PTO
44 hp
Loader lift
2,701 lbs
3-pt lift
3,306 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
TYM
Engine hp
55 hp
PTO hp
44 hp
Drive
4WD
Loader lift
2,701 lbs
Three-point lift
3,306 lbs
Hydraulic flow
11.4 GPM
Fuel tank
11.8 gal
Weight
3,836 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
Yes
Cruise control
No

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleTurboDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • Turbocharging the 2,286 cc four to 55 hp keeps the machine narrow and light while giving it genuine 44 PTO hp
  • 16 forward and 16 reverse synchromesh speeds, or a 4-range hydrostatic, with a 540/750 two-speed independent PTO either way
  • 11.4 gpm to the implement circuit and 16.5 gpm total, so the BL200 loader's 2,701 lb capacity is usable rather than nominal
  • A heated 5520C cab is catalogued on this chassis
  • 15.5 in of ground clearance on a 71.1 in wheelbase gives it good field manners for a compact

What they complain about

  • No published price at all: TYM states none and no two independent dealers quote a bare tractor
  • The 3,306 lb Cat I hitch is the same as the 35 hp 3620's, so the extra 20 horsepower adds nothing at the back
  • 11.8 gallons of fuel behind a turbocharged 55 hp engine is a short day
  • TYM does not state the warranty for this model anywhere in its own material
  • A turbo adds a maintenance item the naturally aspirated 4815 beside it does not have
