TYM · Utility

TYM 5835

Ask a dealer

no published price

TYM 5835

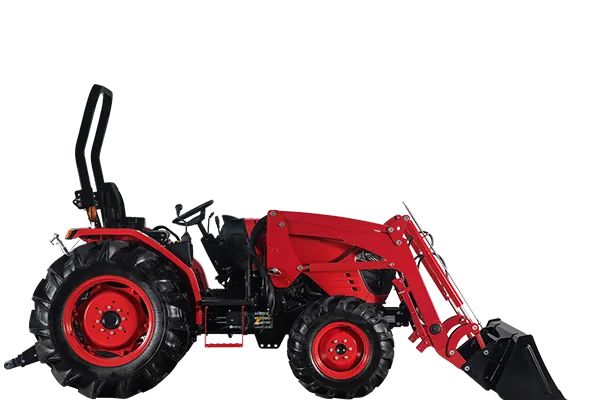

Maker's photo for this series, not this exact model — trim, wheels and cab may differ
Utility
58 hp engine · 48 PTO−17% to the shaft

Where the ex-Branson line stops being a compact: a wet-clutch power shuttle, a Cat II hitch rated 4,409 lb, four loader valves and two rear remotes as standard, and 18.1 in of ground clearance. The BL350 loader's 3,437 lb pivot-pin rating is the highest figure TYM publishes under 70 hp.

Engine
58 hp
PTO
48 hp
Loader lift
3,437 lbs
3-pt lift
4,409 lbs

As published by the maker

Specifications

Size class
Utility
Transmission
Power Shuttle
Engine
TYM
Engine hp
58 hp
PTO hp
48 hp
Drive
4WD
Loader lift
3,437 lbs
Three-point lift
4,409 lbs
Hydraulic flow
11.4 GPM
Fuel tank
15.3 gal
Weight
4,299 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
Yes
Cruise control
No

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringPower ShuttleTurboDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • A wet multi-disc power shuttle rather than a dry clutch, which is the single biggest quality-of-life difference on a loader tractor and is standard here
  • 4,409 lb Cat II hitch with a mechanical position-and-draft lever - it will run implements the rest of the TYM compact line cannot
  • The BL350 loader lifts 3,437 lb at the pivot pin to a 117.5 in lift height, enough to load a dump trailer over the side
  • Four loader valves and two rear remotes are standard, so a grapple and a rear implement can both be plumbed without an add-on kit
  • 18.1 in of ground clearance on a 78.7 in wheelbase, with a 15.3-gallon tank
  • 70-amp alternator and a wet multi-disc PTO clutch, both sized for continuous work

What they complain about

  • TYM publishes no price, and the dealer listings that quote one for this class are loader-inclusive packages
  • Only a single gear pump: 11.4 gpm implement and 5.2 gpm steering come off one pump, where the lighter 5520 uses a dual pump
  • 48 PTO hp from 58 gross is 83 percent, respectable but below what the Case IH or New Holland utility twins deliver at the same engine size
  • The heated cab is an option and the brochure does not publish a cab weight
  • No warranty terms are stated on the page or in the brochure

Cross-shopped against

Line the TYM 5835 up

Same brand or same size, nearest in price

Related tractors

More from TYM →

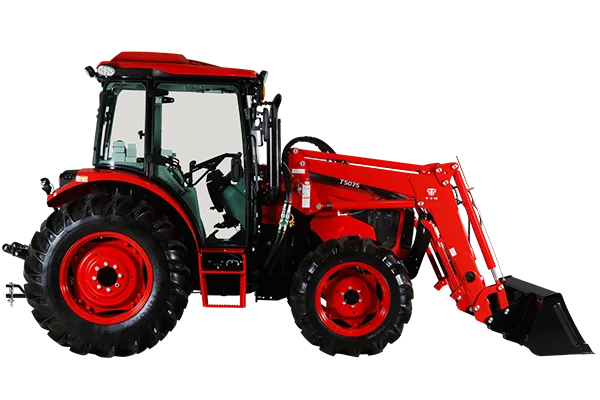

TYM T5068
