TYM · Compact

TYM T3025

Ask a dealer

no published price

TYM T3025

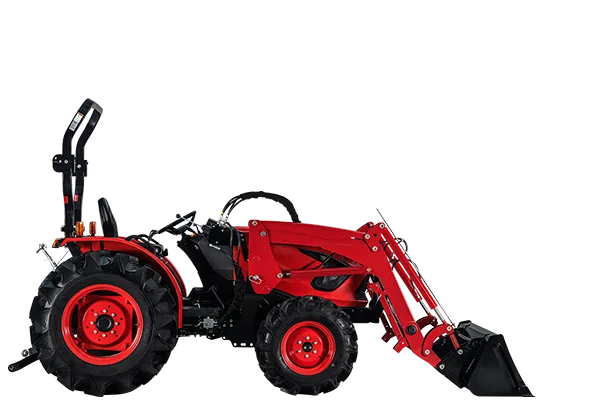

Maker's photo for this series, not this exact model — trim, wheels and cab may differ
Compact
24 hp engine · 21 PTO−13% to the shaft

A 1.7-litre three turning only 2,100 rpm to make 24 hp, in a full compact frame with a 3,307 lb hitch. The horsepower is sub-compact; everything bolted to it is not, which is an unusual and deliberate combination.

Engine
24 hp
PTO
21 hp
Loader lift
2,200 lbs
3-pt lift
3,307 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
TYM
Engine hp
24 hp
PTO hp
21 hp
Drive
4WD
Loader lift
2,200 lbs
Three-point lift
3,307 lbs
Hydraulic flow
7.5 GPM
Fuel tank
8.7 gal
Weight
2,970 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
Yes

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleCruise ControlDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • 3,307 lb of hitch lift from a 24 hp tractor - no other machine in this catalog gets close to that ratio
  • The engine makes its rated power at 2,100 rpm, several hundred revs below the class, which means less noise and less fuel for the same work
  • 21 PTO hp out of 24 gross, an 88 percent driveline figure
  • Cruise control standard, and four standard loader valves with up to four more optional
  • 8.7 gal of fuel, well above the 7.1 gal the older Series 3 tractors carry
  • 12 x 12 synchromesh shuttle standard with a 3-range hydrostat available

What they complain about

  • TYM publishes no price - every model page ends at Request a Quote, and no two independent dealers quote a bare tractor, so the figure here would have to be invented
  • 24 hp will run out long before the 3,307 lb hitch does - this tractor can pick up implements it cannot pull
  • Zero rear remote valves in the base build
  • Hitch lift falls to 2,425 lb measured 24 in. behind the link ends
  • TYM lists the L3035 loader for the T3025C cab model and the BL150 for '3025' - the tractor's own page names no loader, though both loaders rate 2,200 lb at the pivot point so the figure is the same either way
  • 2,970 lb of tractor for 24 hp means traction, not speed, on soft ground
