TYM · Compact

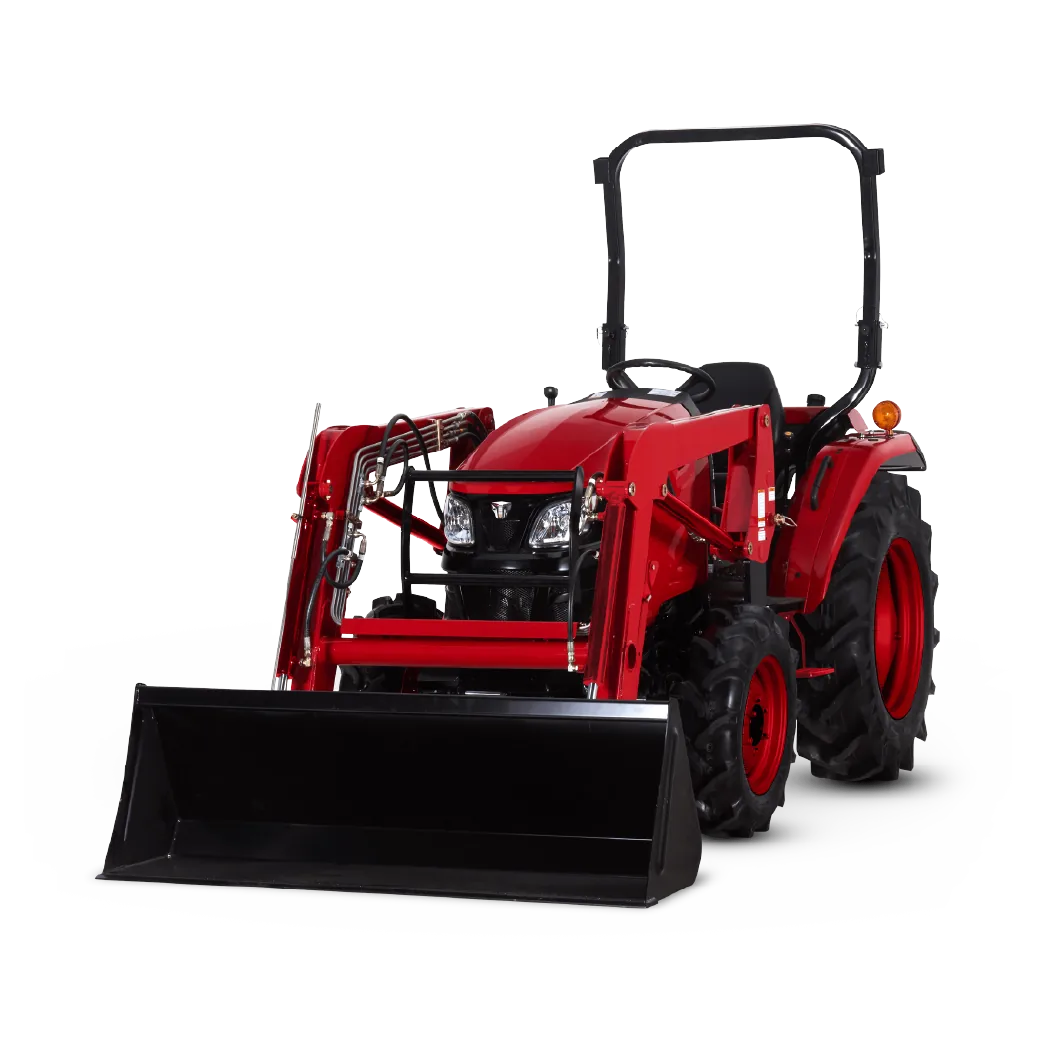

TYM T394

Ask a dealer

no published price

TYM T394
Compact
37.4 hp engine · 30.2 PTO−19% to the shaft

The Yanmar-engined outlier in Series 3: a common-rail 3TNV88-CR instead of TYM's own block, cast-iron running gear and a dual-filter air cleaner. It trades the 3,306 lb hitch the rest of the series carries for engine pedigree.

Engine
37.4 hp
PTO
30.2 hp
Loader lift
2,116 lbs
3-pt lift
2,639 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
Yanmar
Engine hp
37.4 hp
PTO hp
30.2 hp
Drive
4WD
Loader lift
2,116 lbs
Three-point lift
2,639 lbs
Hydraulic flow
6.1 GPM
Fuel tank
9.0 gal
Weight
3,020 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
Yes

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleCruise ControlDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • Common-rail Yanmar 3TNV88-CR rather than the indirect-injection and mechanical engines elsewhere in the class - quieter, cleaner and better on fuel
  • Dual-filter air cleaner and cast-iron component connections, both called out by the maker as durability items
  • 30.2 PTO hp from 37.4 gross, and cruise control as standard
  • 9.0 gal of fuel, the largest tank in TYM's Series 3
  • The TX39H loader lifts 2,116 lb at the pivot point on a 3,020 lb tractor

What they complain about

  • TYM publishes no price - every model page ends at Request a Quote, and no two independent dealers quote a bare tractor, so the figure here would have to be invented
  • 2,639 lb of hitch lift, 667 lb less than the 30 hp 3015 on the same shelf - this is the price of the Yanmar engine
  • 6.1 gpm of implement flow is the lowest of any TYM compact, and it is what you feel on a grapple
  • 12 x 12 mechanical shuttle only, with no hydrostatic option offered
  • Hitch lift falls to 1,558 lb measured 24 in. behind the link ends
  • Remote valves are optional (one or two), so nothing rear-mounted is plumbed as standard
  • 3,000 rated rpm, several hundred higher than the T3035's 2,100, which is more engine noise for less hitch
