TYM · Compact

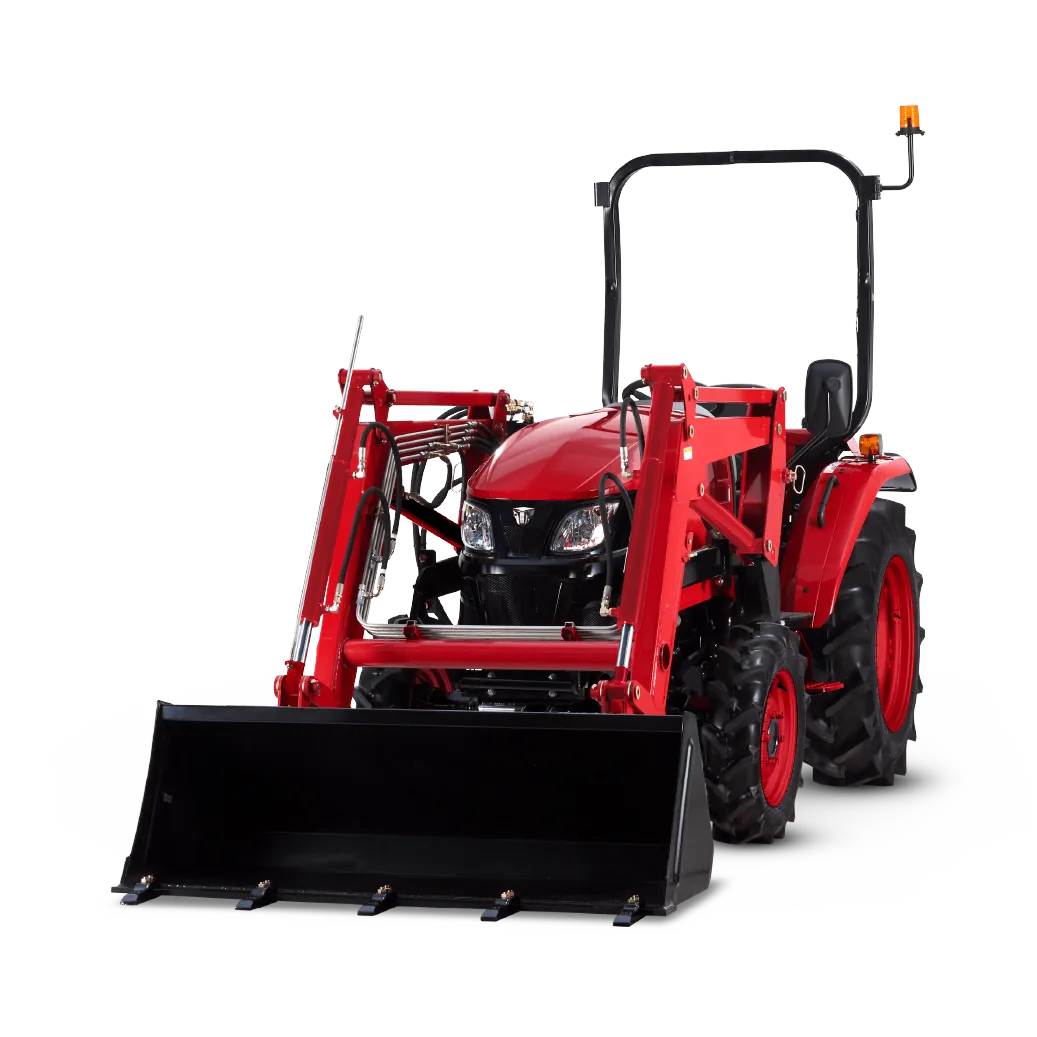

TYM T474

Ask a dealer

no published price

TYM T474
Compact
48.3 hp engine · 35.9 PTO−26% to the shaft

Biggest engine in TYM's Series 3 at 2.3 litres and 48.3 hp, with an external lever for adjusting rear attachments from the ground. The hitch behind it lifts 2,690 lb, which is 616 lb less than the 30 hp 3015 in the same series.

Engine
48.3 hp
PTO
35.9 hp
Loader lift
2,152 lbs
3-pt lift
2,690 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
TYM
Engine hp
48.3 hp
PTO hp
35.9 hp
Drive
4WD
Loader lift
2,152 lbs
Three-point lift
2,690 lbs
Hydraulic flow
7.7 GPM
Fuel tank
9.0 gal
Weight
3,289 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
Yes

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleCruise ControlDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • A four-cylinder 2,286 cc engine in a compact frame, which runs smoother under a PTO load than the three-cylinder machines around it
  • An external lever lets you adjust rear attachments standing beside the tractor rather than from the seat
  • Cruise control standard, and 9.0 gal of fuel
  • The TX47 loader lifts 2,152 lb at the pivot point
  • 12 x 12 mechanical shuttle with 4WD and hydrostatic steering standard

What they complain about

  • TYM publishes no price - every model page ends at Request a Quote, and no two independent dealers quote a bare tractor, so the figure here would have to be invented
  • 35.9 PTO hp from 48.3 gross is a 74 percent driveline figure - the worst ratio of any TYM compact, and 12 horsepower disappear between the flywheel and the shaft
  • 2,690 lb of hitch lift at 48 hp, against 3,306 lb on the 30 hp 3015 in the same series
  • 7.7 gpm of implement flow, the same pump the 30 hp 3015 uses
  • One standard remote valve
  • Hitch lift falls to 1,764 lb measured 24 in. behind the link ends, a 34 percent drop
  • No hydrostatic build is offered, only the 12 x 12 mechanical shuttle
