Case IH · Compact

Case IH Farmall 35A

Ask a dealer

no published price

Case IHFarmall 35A
Compact
35 hp engine · 31 PTO−11% to the shaft

The only one of the five redesigned MY2026 compact A tractors without a turbo. A 31 PTO hp figure out of 35 gross is an 89 percent driveline result, which is what a naturally aspirated 1.9-litre three buys when it is not being asked to make headline power.

Engine
35 hp
PTO
31 hp
Loader lift
890 lbs
3-pt lift
1,596 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine hp
35 hp
PTO hp
31 hp
Drive
MFWD
Loader lift
890 lbs
Three-point lift
1,596 lbs
Hydraulic flow
8.4 GPM
Fuel tank
12.6 gal
Weight
3,042 lbs
Warranty
6 yr extended (hours not stated)
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
No

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • 31 PTO hp from 35 gross is the highest driveline efficiency in the compact A range, and it loses only 0.9 hp on the hydrostatic build
  • Naturally aspirated where every other compact A is turbocharged - fewer hot parts, and nothing to spool on a machine that spends its life at PTO speed
  • 12.6 gal of fuel is the largest tank in the range, and nearly double what the outgoing 35A carried
  • A 12 x 12 mechanical shuttle with synchro shift is standard, with a 3-range hydrostatic offered rather than forced
  • No DEF tank anywhere in the compact A line
  • The 6-year extended warranty covers the whole compact A and C series at no additional cost

What they complain about

  • Case IH publishes no list price and its Build & Price tool hands you to a dealer rather than a figure, so this page cannot tell you what it costs - every public number found either bundles the loader or is a financing offer
  • The MY2026 redesign cut hitch lift from 1,808 lb to 1,596 lb at 24 in. behind the pin, so the new tractor picks up less than the one it replaces
  • The Farmall Compact brochure Case IH still links from this page is the outgoing machine and prints 29.7 PTO hp, 7.4 gal and 1,808 lb - only the 2026 spec sheet matches the model page
  • Zero rear remotes in the base build; up to three are optional, so every rear circuit is a line item
  • Case IH rates the L340A at 890 lb but does not publish where it measured, so the figure sits beside nobody else's cleanly
  • Non-cab only across the whole compact A series, so a heated cab means the compact C frame

Cross-shopped against

Line the Case IH Farmall 35A up

Same brand or same size, nearest in price

Related tractors

More from Case IH →

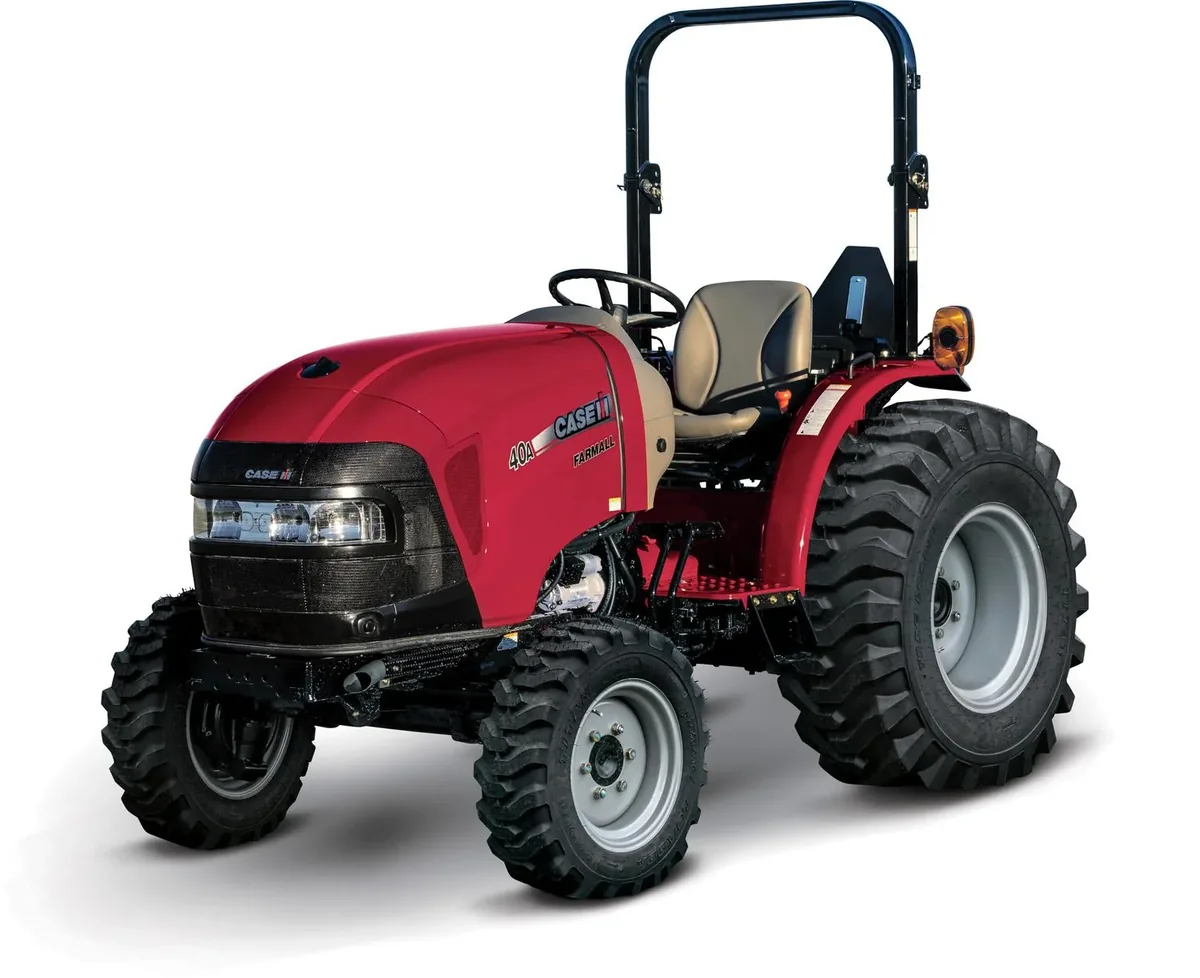

Case IH Farmall 40A
Ask a dealerno published price
Compact

Case IH

Case IH Farmall 40A

40 hp engine · 35.9 PTO−10% to the shaft
Loader
890 lbs
3-pt
1,596 lbs
Trans
Shuttle
Drive
MFWD

Turbocharged version of the 35A on the same 66.2 in. wheelbase, and the point in the compact A range where the frame stops growing and only the engine does. 35.9 PTO hp is enough for a 6-foot cutter; the 45A above it moves to a longer chassis and a bigger pump.

Spec sheet & owner notes
Case IHFarmall 55C
Ask a dealerno published price
Compact

Case IH

Case IH Farmall 55C

55 hp engine · 46.7 PTO−15% to the shaft
Loader
1,830 lbs
3-pt
2,756 lbs
Trans
Shuttle
Drive
MFWD

Top of the compact Farmall range and the last stop before the utility line. 46.7 PTO hp and a 2,756 lb hitch put it against a Kubota L60 or a Deere 4066R, but it carries the same 8.2 gpm pump as the 35 hp 35C, which is where the comparison stops.

Spec sheet & owner notes
Case IHFarmall 25A
Ask a dealerno published price
Compact

Case IH

Case IH Farmall 25A

24.6 hp engine · 19.2 PTO−22% to the shaft
Loader
1,214 lbs
3-pt
1,433 lbs
Trans
Shuttle
Drive
MFWD

Smallest of the compact A tractors and a thousand pounds heavier than the 25SC subcompact beneath it, on a 1.3-litre turbocharged and aftercooled three. The 12 x 12 synchro shuttle is standard where most 25 hp machines give you a hydrostat and nothing else.

Spec sheet & owner notes
