Kioti · Sub-Compact

Kioti CS2230

~$16,458

MSRP, base build

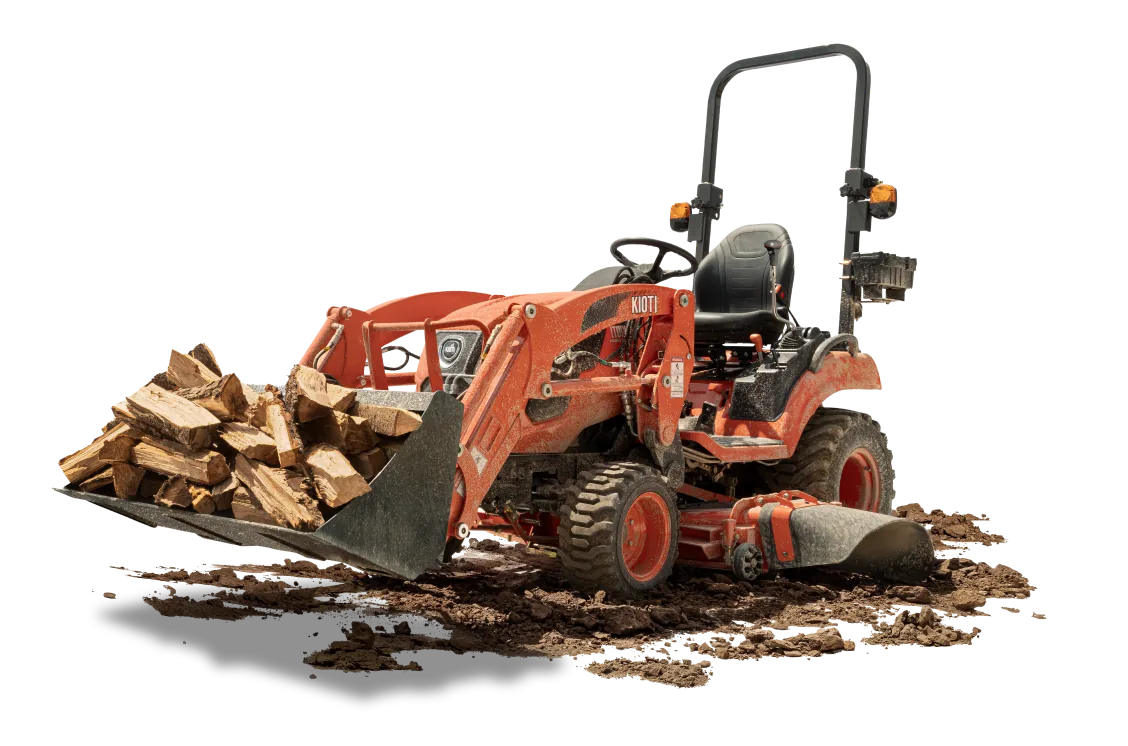

Kioti CS2230
Maker's photo for this series, not this exact model — trim, wheels and cab may differ
Sub-Compact
21 hp engine · 16.7 PTO−20% to the shaft

A 1,233 cc three-cylinder in the small CS body, still rated 21 hp but pulling 16.7 at the PTO from 250 lb more tractor. The SL2530 loader lifts 871 lb at the pin, less than the cheaper CS2220, so this one is bought for the engine and the ballast rather than the front end.

Engine
21 hp
PTO
16.7 hp
Loader lift
871 lbs
3-pt lift
700 lbs

1.01 PTO hp per $1,000 of list price

As published by the maker

Specifications

Size class
Sub-Compact
Transmission
Hydrostatic
Engine
Daedong
Engine hp
21 hp
PTO hp
16.7 hp
Drive
4WD
Loader lift
871 lbs
Three-point lift
700 lbs
Hydraulic flow
7.0 GPM
Fuel tank
6.6 gal
Weight
1,735 lbs
Warranty
6 yr / unlimited hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
No

On the price: The maker's own published starting figure for the base build. A dealer adds a loader, a deck and freight on top.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDHydrostaticFront LoaderPower SteeringDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • 1,233 cc making only 21 hp means the engine is loafing rather than straining at rated load
  • 1,735 lb bare weight is 250 lb over the CS2210, and that mass is what keeps a loaded bucket from lightening the rear wheels
  • 16.7 PTO hp is the highest of Kioti's three 21 hp CS models
  • Still under 25 hp, so Tier 4 Final without a DPF or a regeneration cycle
  • 72 months of powertrain coverage with no hour cap

What they complain about

  • 871 lb of loader lift is less than the roughly $500-cheaper CS2220's 1,062 lb, which is a hard pair of price tags to explain on one showroom floor
  • Kioti's page calls the engine intercooled but never says turbocharged, so the induction setup is not actually published
  • 700 lb at the 3-point, unchanged across the entire CS line, with no measuring point given
  • Kioti moves far fewer machines in the US than Kubota or Deere, so a rare fault has a thinner written record behind it

Cross-shopped against

Line the Kioti CS2230 up

Same brand or same size, nearest in price

Related tractors

More from Kioti →
Kioti CS2220
~$15,939MSRP, base build
Sub-CompactSeries photo

Kioti

Kioti CS2220

21 hp engine · 16.3 PTO−22% to the shaft
Loader
1,062 lbs
3-pt
700 lbs
Trans
Hydrostatic
Drive
4WD

Same 1,007 cc engine and same 21 hp as the CS2210, but the SL2420 loader lifts 1,062 lb at the pin instead of 675 and the pump goes to 7.0 gpm. That makes it the cheapest CS with a front end worth putting real dirt in.

Spec sheet & owner notes
Kioti CS2520
~$17,799MSRP, base build
Sub-Compact

Kioti

Kioti CS2520

24.5 hp engine · 18.5 PTO−24% to the shaft
Loader
1,062 lbs
3-pt
700 lbs
Trans
Hydrostatic
Drive
4WD

Undercuts a Deere 1025R and a Kubota BX2380 on price while out-lifting both at the loader - 1,062 lb at the pin from 24.5 hp of Daedong diesel. Six years of powertrain cover is the other lever Kioti pulls; thinner dealer coverage is what it costs.

Spec sheet & owner notes

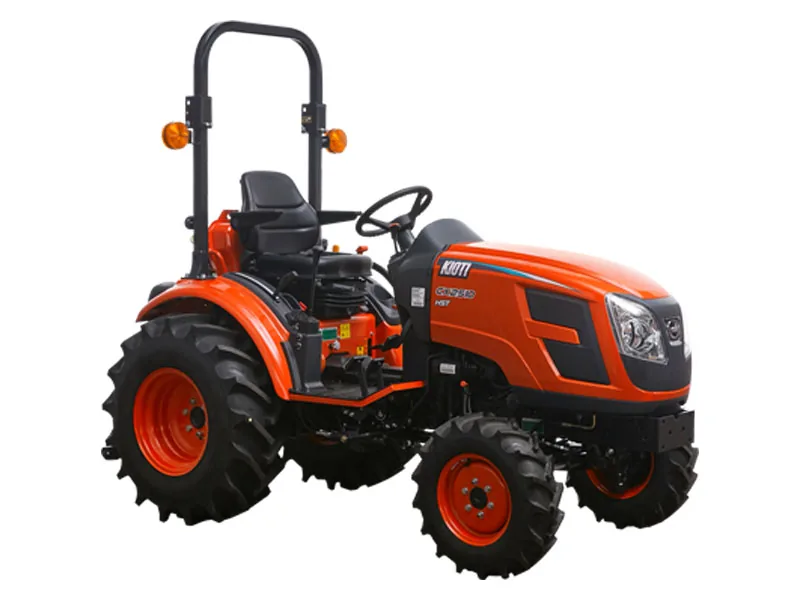

Kioti CX2510
