TYM · Compact

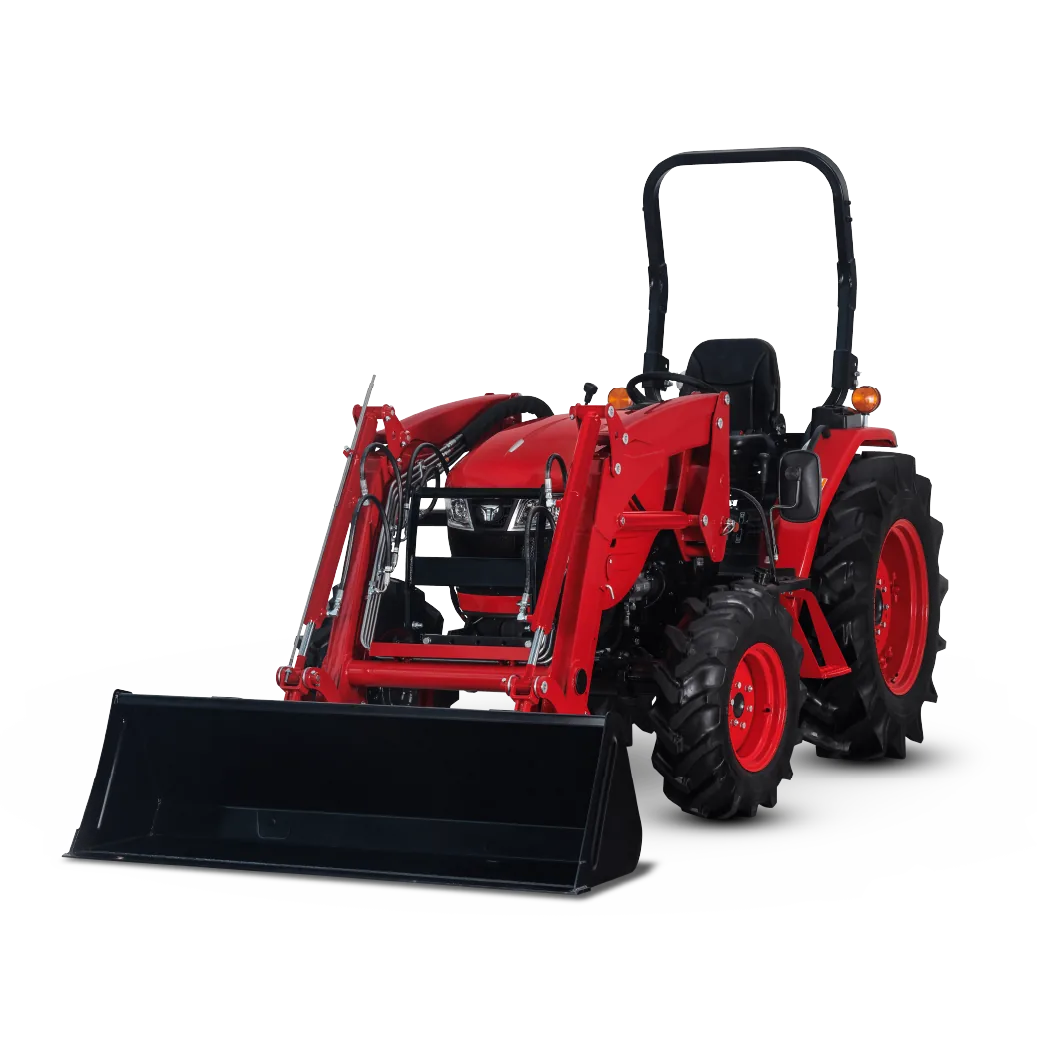

TYM 3620

Ask a dealer

no published price

TYM 3620
Compact
35 hp engine · 28 PTO−20% to the shaft

A 35 hp engine in a series 4 frame that weighs 3,754 lb - nearly 500 lb more than the 48 hp series 3 machines. That inversion is the whole point: the 3620 buys chassis, a 16-speed shuttle, a 540/750 two-speed PTO and an 11.8-gallon tank rather than horsepower.

Engine
35 hp
PTO
28 hp
Loader lift
2,701 lbs
3-pt lift
3,306 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
TYM
Engine hp
35 hp
PTO hp
28 hp
Drive
4WD
Loader lift
2,701 lbs
Three-point lift
3,306 lbs
Hydraulic flow
7.7 GPM
Fuel tank
11.8 gal
Weight
3,754 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
No

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • 3,754 lb of tractor behind a 35 hp engine gives it the traction and stability of machines a class above
  • The BL200 loader lifts 2,701 lb at the pivot pin, more than most 50 hp compacts manage
  • 16 forward and 16 reverse speeds on the synchromesh build, or a 4-range hydrostatic, both with a 540/750 two-speed independent PTO
  • 15.5 in of ground clearance and an 11.8-gallon tank make it a genuine all-day field tractor rather than a yard machine
  • Cat I hitch rated 3,306 lb at the link ends

What they complain about

  • 28 PTO hp is only 80 percent of gross and is the lowest PTO figure in the series 4 range - it is the chassis you are buying, not the engine
  • TYM publishes no price and no dealer publishes a bare-tractor figure for it
  • Implement flow is 7.7 gpm, well under the 11.4 gpm the lighter series 3 machines push, so the big loader cycles slowly
  • The brochure's hitch row prints 1,500 lb alongside 3,306 kg - the units are transposed, and it is the 3,306 lb / 1,500 kg pair that is right
  • No warranty statement on the model page or in the brochure
