TYM · Compact

TYM T3035

Ask a dealer

no published price

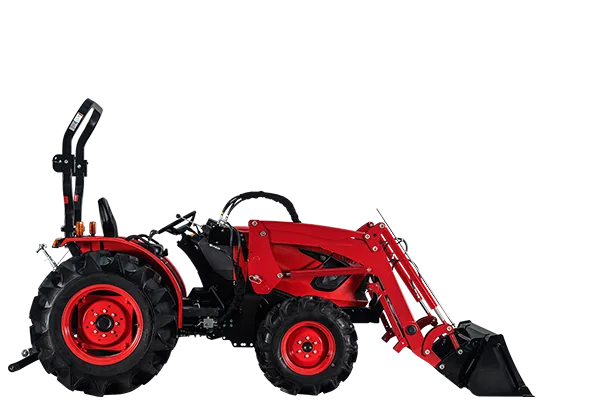

TYM T3035
Maker's photo for this series, not this exact model — trim, wheels and cab may differ
Compact
35 hp engine · 30 PTO−14% to the shaft

The T3025's chassis with the same 2,100 rpm 1.7-litre three turned up to 35 hp, which makes it the sensible half of that pair: 30 PTO hp is enough to use the 3,307 lb hitch the frame was built around.

Engine
35 hp
PTO
30 hp
Loader lift
2,200 lbs
3-pt lift
3,307 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
TYM
Engine hp
35 hp
PTO hp
30 hp
Drive
4WD
Loader lift
2,200 lbs
Three-point lift
3,307 lbs
Hydraulic flow
7.5 GPM
Fuel tank
8.7 gal
Weight
2,970 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
Yes

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleCruise ControlDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • 30 PTO hp from 35 gross, at only 2,100 rated rpm - the same PTO figure as the 3515 from an engine turning 500 fewer revs
  • 3,307 lb of hitch lift with cruise control and four standard loader valves
  • 8.7 gal of fuel, 1.6 gal more than the older 3515 on the same frame size
  • Choice of a 12 x 12 synchromesh shuttle or a 3-range hydrostat
  • Naturally aspirated, with no turbo and no particulate filter
  • 72-month, 3,000-hour powertrain cover for non-commercial use

What they complain about

  • TYM publishes no price - every model page ends at Request a Quote, and no two independent dealers quote a bare tractor, so the figure here would have to be invented
  • Zero rear remote valves standard, despite four being fitted to the loader circuit
  • Identical 2,970 lb weight and 65.7 in. wheelbase to the 24 hp T3025, so the frame is not braced for the extra power
  • Hitch lift drops to 2,425 lb at 24 in. behind the link ends
  • TYM's page lists the displacement as 1,744 cc where every other T1700-series entry says 1,714 cc - a one-digit inconsistency on the maker's own table
  • The L3035 loader's 2,200 lb at the pivot point is the same figure the 24 hp T3025 gets
