TYM · Compact

TYM 4820

Ask a dealer

no published price

TYM 4820

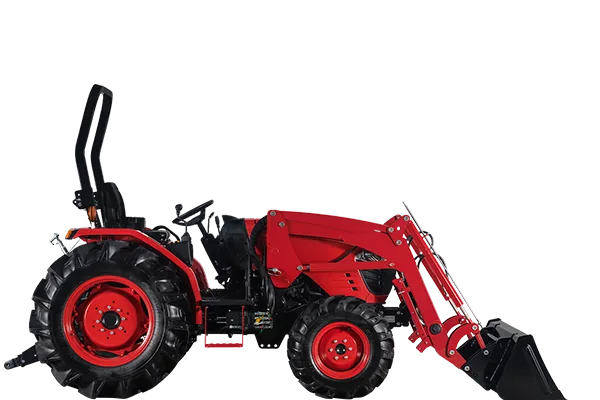

Maker's photo for this series, not this exact model — trim, wheels and cab may differ
Compact
48 hp engine · 38.4 PTO−20% to the shaft

Series 4 is where TYM's hydraulics finally match its hitch: 11.4 gpm to the implement circuit against the 7.7 gpm the Series 3 tractors make do with, behind the same 3,306 lb lift. The 4820 is the naturally aspirated entry point.

Engine
48 hp
PTO
38.4 hp
Loader lift
2,701 lbs
3-pt lift
3,306 lbs

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
TYM
Engine hp
48 hp
PTO hp
38.4 hp
Drive
4WD
Loader lift
2,701 lbs
Three-point lift
3,306 lbs
Hydraulic flow
11.4 GPM
Fuel tank
11.8 gal
Weight
3,831 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
No

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDFront LoaderPower SteeringShuttleDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • 11.4 gpm of implement flow, 48 percent more than any Series 3 tractor, which is what a grapple or a snowblower chute actually needs
  • 3,306 lb of hitch lift with a 16 x 16 synchromesh shuttle standard and a 4-range hydrostat offered
  • The BL200 loader lifts 2,701 lb at the pivot point, 500 lb more than the BL150 on the smaller frame
  • 11.8 gal of fuel, well up on the 7.1 gal the Series 3 tractors carry
  • Up to four optional remote valves
  • 540 and 750 rpm rear PTO speeds
  • Naturally aspirated - no turbo, no particulate filter, no regeneration

What they complain about

  • TYM publishes no price - every model page ends at Request a Quote, and no two independent dealers quote a bare tractor, so the figure here would have to be invented
  • 38.4 PTO hp from 48 gross is an 80 percent driveline figure, respectable but not what the bigger frame promises
  • All remote valves are optional; none is standard
  • Category I hitch despite 3,306 lb of lift, which limits what will pin up
  • Hitch lift falls to 2,425 lb measured 24 in. behind the link ends
  • 3,831 lb and a 71.1 in. wheelbase make it too big for the sort of yard a sub-compact handles
