John Deere · Sub-Compact

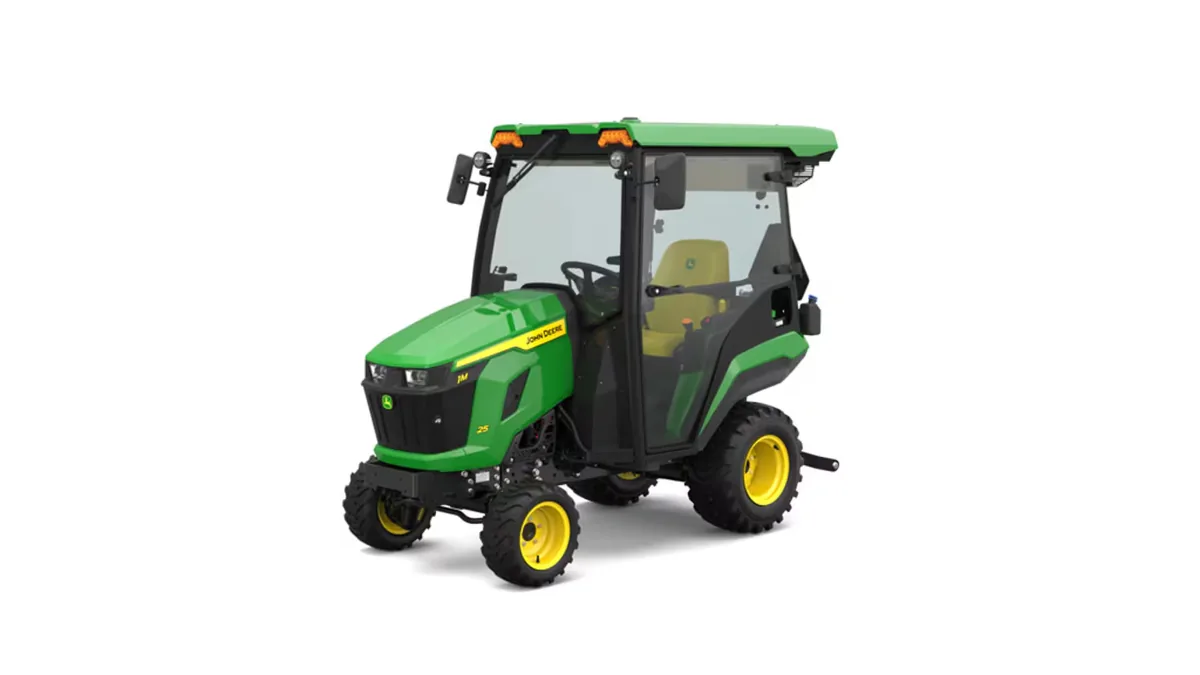

John Deere 1M 25

~$18,013

dealer list, not MSRP

John Deere 1M 25
Sub-Compact
23.2 hp engine · 17.8 PTO−23% to the shaft

Replacing the 1025R for model year 2027, this one adds what the 1025R never offered: a factory-installed HVAC cab. Same 758 lb hitch, a 6.3 gpm pump and cruise control standard, sitting between the stripped 1E 23 and the heavier, longer 1R 25.

Engine
23.2 hp
PTO
17.8 hp
Loader lift
803 lbs
3-pt lift
758 lbs

0.99 PTO hp per $1,000 of list price

As published by the maker

Specifications

Size class
Sub-Compact
Transmission
Hydrostatic
Engine
Yanmar
Engine hp
23.2 hp
PTO hp
17.8 hp
Drive
4WD
Loader lift
803 lbs
Three-point lift
758 lbs
Hydraulic flow
6.3 GPM
Fuel tank
6.3 gal
Weight
1,556 lbs
Warranty
6 yr / 2000 hr powertrain
4WD
Yes
Cab
Available
Turbo
No
Cruise control
Yes

On the price: This maker publishes no price, so the figure comes from dealer listings. Regional dealers price the same machine differently.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDHydrostaticFront LoaderPower SteeringCruise ControlDieselCab

From owner discussion and long-term write-ups

What owners say

What they like

  • A factory-installed HVAC cab can be ordered, which the 1025R it replaces never offered at any price
  • Cruise control is standard, so the Twin Touch pedals do not have to be held down through a long mow
  • The 120R Quik-Park loader mounts without tools and lifts 803 lb at the pivot pin
  • At 1,556 lb bare it still trailers behind a half-ton pickup on a modest trailer
  • Three rear selective control valves on the base machine - one more than the larger 1R 25 gets
  • Six years or 2,000 hours of powertrain coverage

What they complain about

  • 758 lb at the hitch is unchanged from the 1E 23 below it, so the extra horsepower buys no extra lift
  • 6.3 gpm of pump output is modest once a cab and a loader are both drawing on it
  • Ordering the cab takes shipping weight to 2,019 lb, which changes the trailer and tow vehicle the machine needs
  • Deere's own sheet rates it 24 hp by SAE J1995 while the published gross figure is 23.2 hp - a small gap, but the two numbers are not interchangeable
  • Deere publishes no starting price, and only a handful of dealers quote a bare base-machine figure at all

Cross-shopped against

Line the John Deere 1M 25 up

Same brand or same size, nearest in price

Related tractors

More from John Deere →
John Deere 1025R
~$18,764MSRP, base build
Sub-CompactNo longer built

John Deere

John Deere 1025R

23.9 hp engine · 18 PTO−25% to the shaft
Loader
905 lbs
3-pt
681 lbs
Trans
Hydrostatic
Drive
4WD

Best-selling sub-compact in the US, and the AutoConnect deck is most of the reason - a mower you fit and drop without leaving the seat. It continues for 2026 under the 1M 25 name, same 23.9 hp Yanmar and same 905 lb loader.

Spec sheet & owner notes
John Deere 1023E
~$15,759MSRP, base build
Sub-CompactNo longer built

John Deere

John Deere 1023E

21.5 hp engine · 15.3 PTO−29% to the shaft
Loader
836 lbs
3-pt
681 lbs
Trans
Hydrostatic
Drive
4WD

Deere's price of entry: the same 1-Series frame and 120R loader mounts as the 1025R, minus cruise control, the independent PTO and about three thousand dollars. Carried into 2026 as the 1E 23, so the old badge is now mostly a used-lot search term.

Spec sheet & owner notes

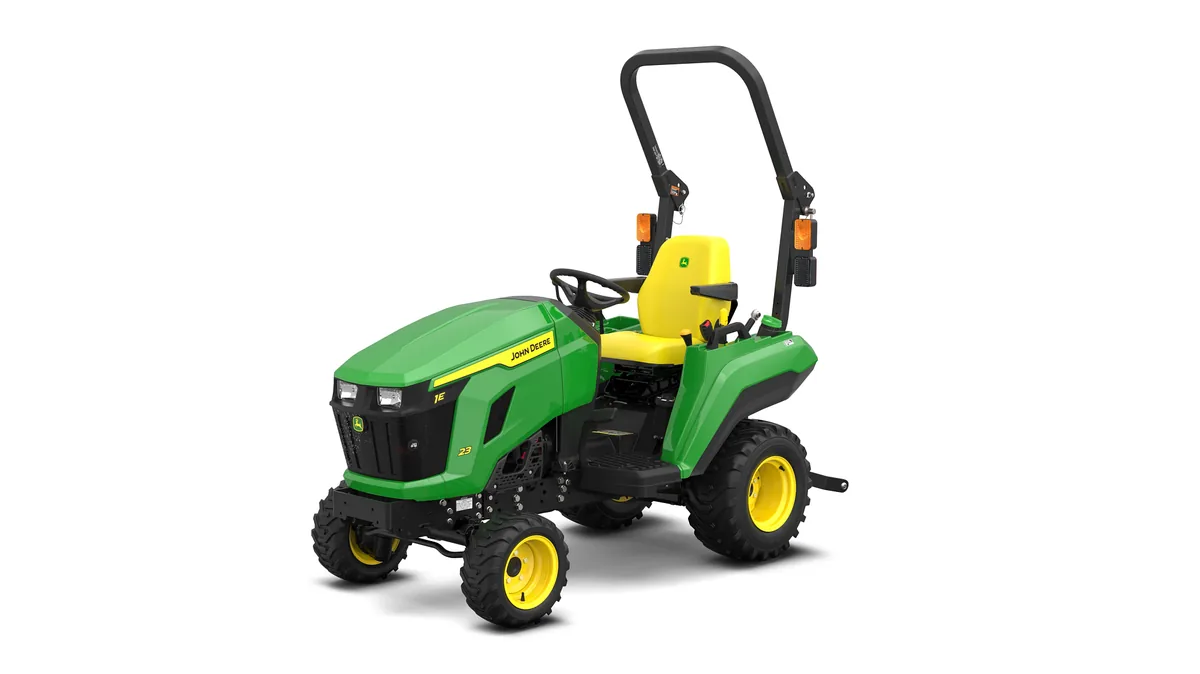

John Deere 1E 23
