TYM · Sub-Compact

TYM 2400

Ask a dealer

no published price

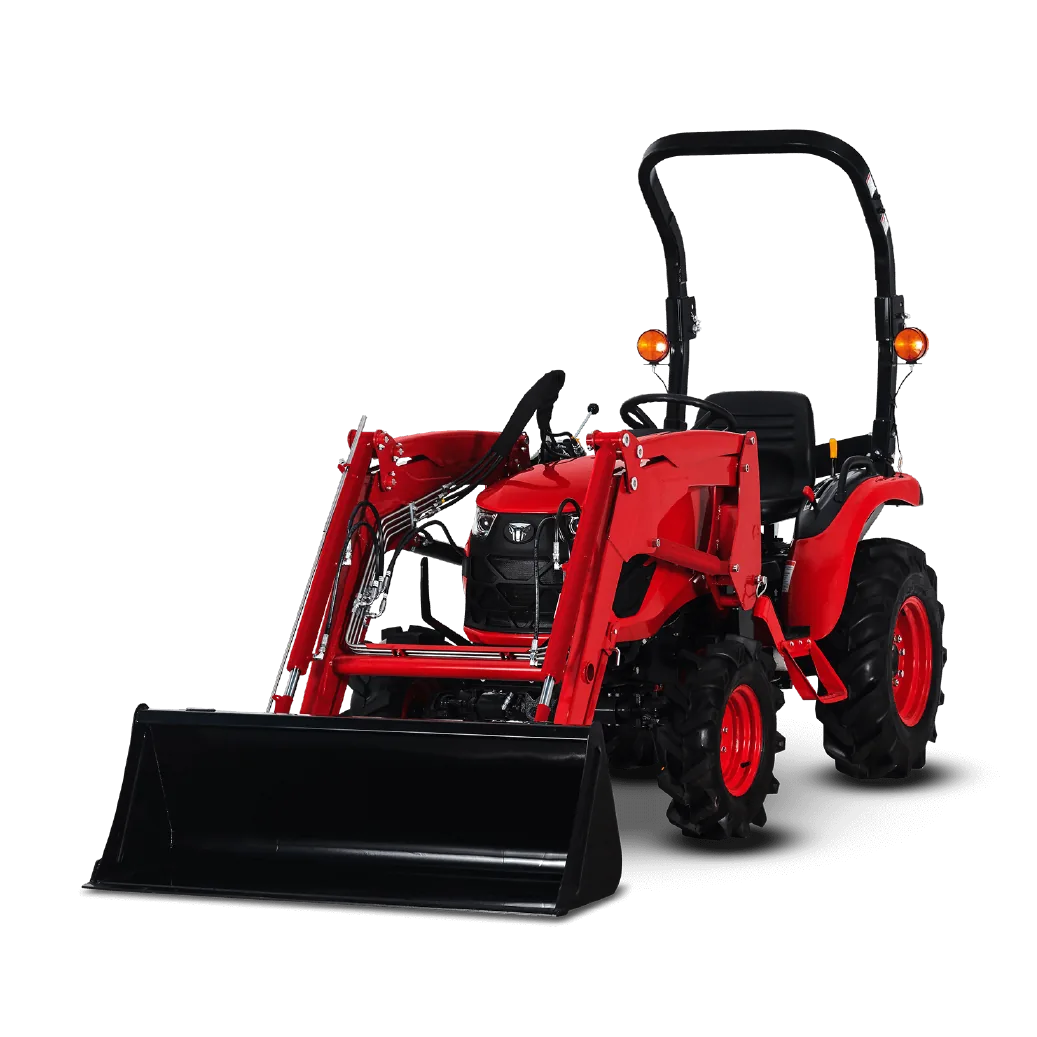

TYM 2400
Maker's photo for this series, not this exact model — trim, wheels and cab may differ
Sub-Compact
24 hp engine · 21 PTO−13% to the shaft

The one sub-compact in TYM's range with a geared base build - a 6-speed constant-mesh box with only two reverse ratios - and that gearbox is why it makes 21 PTO hp where the hydrostatic 2400H makes 18. Three horsepower is a lot at 24 gross.

Engine
24 hp
PTO
21 hp
Loader lift
1,314 lbs
3-pt lift
1,499 lbs

As published by the maker

Specifications

Size class
Sub-Compact
Transmission
Gear
Engine
TYM
Engine hp
24 hp
PTO hp
21 hp
Drive
4WD
Loader lift
1,314 lbs
Three-point lift
1,499 lbs
Hydraulic flow
4.7 GPM
Fuel tank
6.0 gal
Weight
1,792 lbs
Warranty
6 yr / 3000 hr powertrain
4WD
Yes
Cab
Open station
Turbo
No
Cruise control
Yes

On the price: Neither this maker nor any dealer reachable from here publishes a bare-tractor price for this model — every listing found either says “call for price” or bundles a loader. That is how this brand sells, so expect to get a number by asking a dealer rather than by looking it up.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDGearFront LoaderPower SteeringDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • 21 PTO hp out of 24 gross on the constant-mesh build, an 88 percent driveline figure that the hydrostatic version cannot approach
  • 540 and 1,000 rpm rear PTO speeds, which is unusual on a sub-compact and useful for implements built for the faster shaft
  • Dual gear pump with 4.7 gpm to the implement circuit, the highest implement flow in TYM's sub-compact range
  • Two optional remote valves rather than one
  • Cruise control is offered on the HST build for anyone who wants the hydrostat instead
  • 72-month, 3,000-hour powertrain cover for non-commercial use

What they complain about

  • TYM publishes no price - every model page ends at Request a Quote, and no two independent dealers quote a bare tractor, so the figure here would have to be invented
  • Six forward gears and only two reverse, so loader work means hunting for a usable reverse ratio - this is a gearbox for mowing, not for shuttling
  • Choosing the 2400H hydrostatic costs 3 PTO hp, taking 21 down to 18
  • 6.0 gal is the smallest fuel tank in the TYM line
  • The BL100S loader lifts 1,314 lb at the pivot point, below what the T264 beside it manages
  • Hitch lift drops from 1,499 lb at the link ends to 974 lb at 24 in. behind them

Cross-shopped against

Line the TYM 2400 up

Same brand or same size, nearest in price

Related tractors

More from TYM →

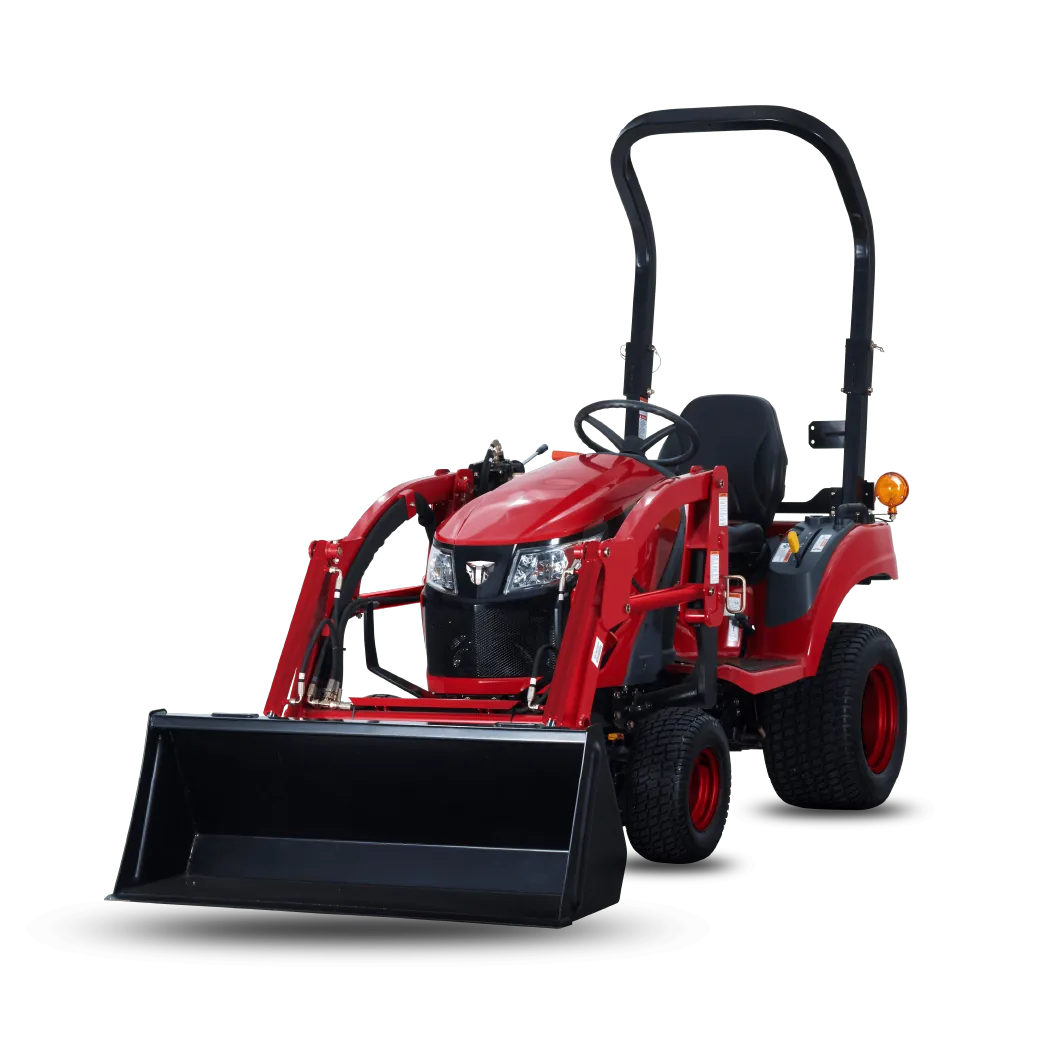

TYM T224
Ask a dealerno published price
Sub-Compact

TYM

TYM T224

21.5 hp engine · 15.1 PTO−30% to the shaft
Loader
—
3-pt
1,100 lbs
Trans
Hydrostatic
Drive
4WD

Smallest tractor TYM sells in North America and the only one under a litre: a 993 cc Yanmar three spinning to 3,200 rpm in a 1,472 lb frame. It undercuts a Kubota BX on weight by 200 lb, which is the point of it and also its limit.

Spec sheet & owner notes

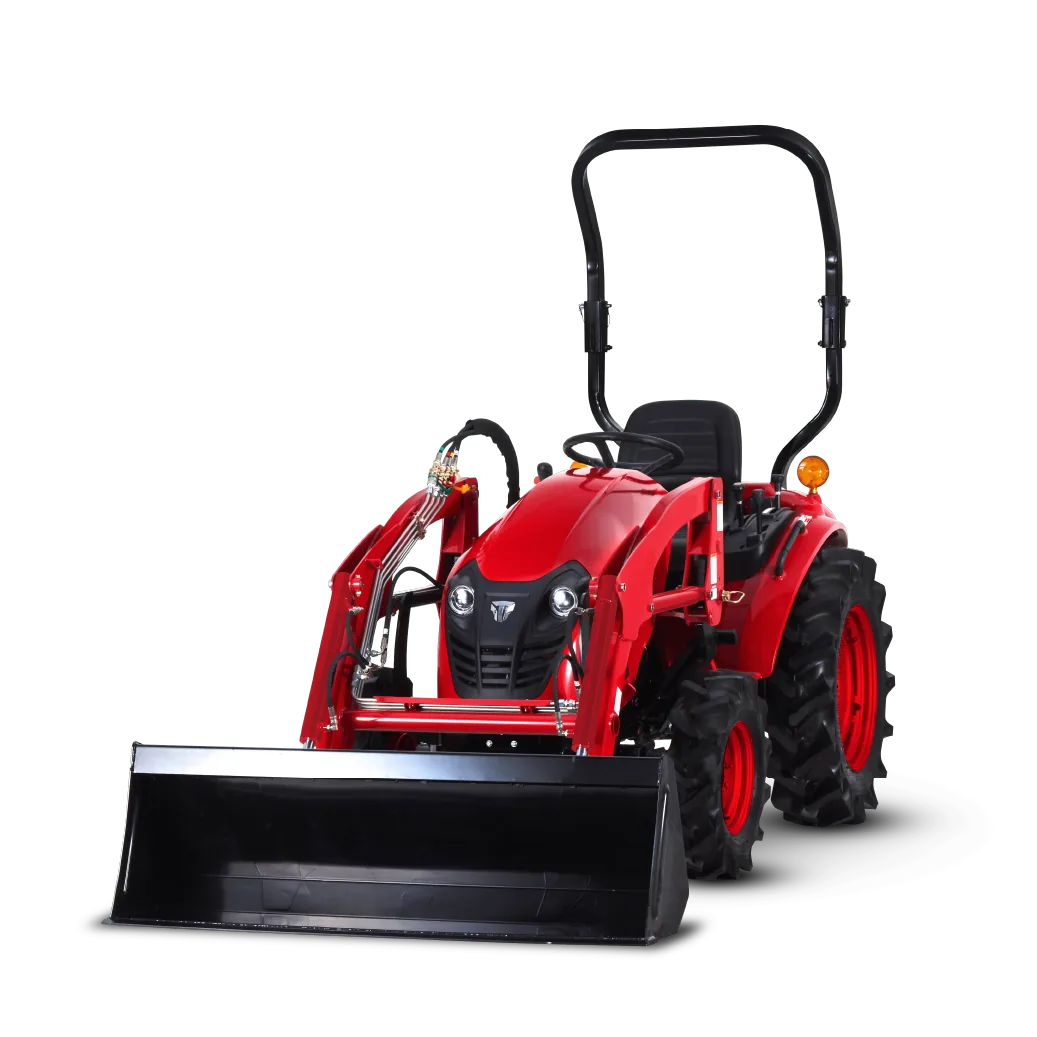

TYM T264
Ask a dealerno published price
Sub-Compact

TYM

TYM T264

24 hp engine · 18.3 PTO−24% to the shaft
Loader
1,380 lbs
3-pt
1,534 lbs
Trans
Hydrostatic
Drive
4WD

TYM's own T1100N2 engine instead of a Yanmar, tuned to make its 24 hp at only 2,800 rpm, in a frame 400 lb heavier than the T224. The extra mass is what buys the 1,534 lb hitch, the biggest in TYM's sub-compact range.

Spec sheet & owner notes

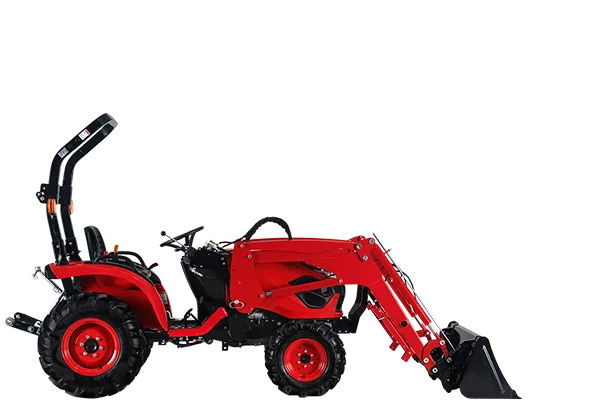

TYM 2610
Ask a dealerno published price
Sub-CompactSeries photo

TYM

TYM 2610

24 hp engine · 18 PTO−25% to the shaft
Loader
1,374 lbs
3-pt
1,499 lbs
Trans
Hydrostatic
Drive
4WD

Same engine, hitch and pumps as the 2400 on a wheelbase stretched 6.6 in. and a 3-range hydrostat geared for 17 mph - the fastest sub-compact TYM builds. It is the long-legged version of the same machine rather than a more capable one.

Spec sheet & owner notes
