New Holland · Compact

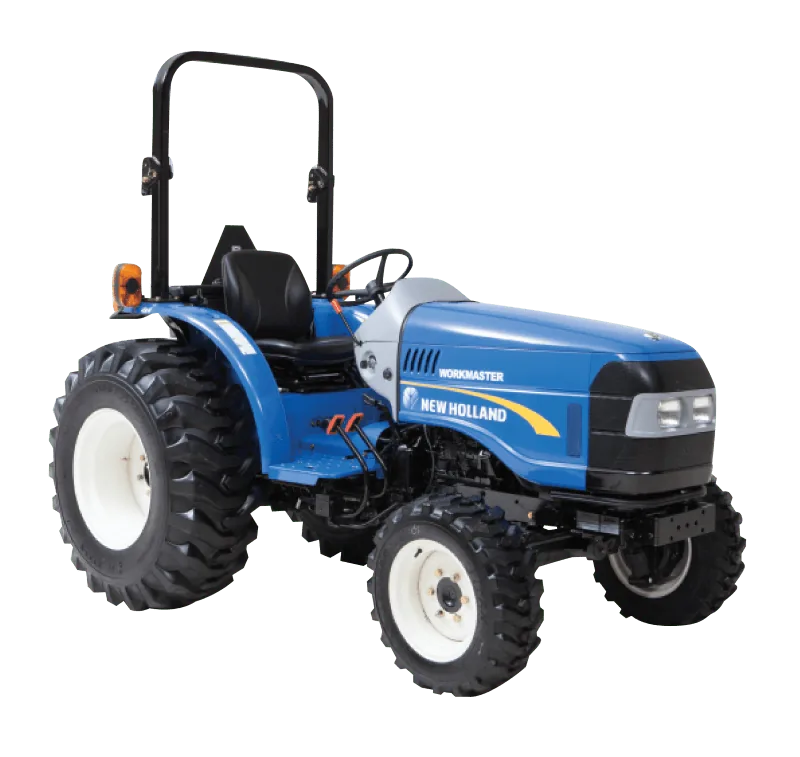

New Holland Workmaster 40

~$29,239

dealer list, not MSRP

No longer in production

No longer built. The maker sells the New Holland Workmaster 40C in its place. See the New Holland Workmaster 40C The specs and owner reports below still describe this machine, and used ones trade steadily — but a dealer cannot order you a new one.

New Holland Workmaster 40
Compact
40 hp engine · 34 PTO−15% to the shaft

The original Workmaster compact range ends here, still listed at $29,239 in the MY2026 book but overtaken by the Workmaster 40C that New Holland showed in February 2026. Same 1.9-litre LS engine as a Boomer 40 in a plainer, cheaper wrapper.

Engine
40.0 hp
PTO
34.0 hp
Loader lift
1,500 lbs
3-pt lift
1,808 lbs

1.16 PTO hp per $1,000 of list price

As published by the maker

Specifications

Size class
Compact
Transmission
Shuttle
Engine
LS
Engine hp
40.0 hp
PTO hp
34.0 hp
Drive
4WD
Loader lift
1,500 lbs
Three-point lift
1,808 lbs
Hydraulic flow
8.2 GPM
Fuel tank
7.4 gal
Weight
3,067 lbs
Warranty
6 yr / 1500 hr powertrain
4WD
Yes
Cab
Open station
Turbo
Yes
Cruise control
No

On the price: This maker publishes no price, so the figure comes from dealer listings. Regional dealers price the same machine differently.

Lift figures are the maker's and are quoted at whichever point the maker chose; the about page explains why two loaders with the same number do not lift the same pallet.

Comes with

4WDShuttleFront LoaderPower SteeringDiesel

From owner discussion and long-term write-ups

What owners say

What they like

  • Shares the 1.9-litre turbocharged common-rail LS engine with the Boomer 40 but lists about $5,874 below it
  • 34 PTO hp on the shuttle is genuine 6 ft rotary-cutter power in a compact frame
  • Boomer Guard-6 cover is identical to the Boomer line - 24 months full, 72 months or 1,500 hours powertrain
  • 3,067 lb is nearly 200 lb heavier than a Boomer 40 ROPS, which helps rather than hurts on loader work

What they complain about

  • Superseded: New Holland launched the Workmaster 40C alongside it, so this is a run-out model and residuals will reflect that
  • 1,808 lb at the link ends is the same hitch the 24.4 hp Workmaster 25 carries, so the extra engine has nowhere to go
  • The 140TLA2 loader lifts only 1,500 lb at the pivot pin against 1,822 lb from the Boomer 40's 250TLA
  • 7.4 gal of fuel on a 3,067 lb tractor is a short tank
  • No cab at any price in this range

Gathered from owner reports

What owners report

The most concrete thing in the record is a price check, and owners agreed on it: a 2017 example with 600 hours bundled with a box blade, forks, bucket and a 7-foot finish mower at $25,000 drew responses calling it a good to great deal, and a decent fit for a buyer with 80 acres who was leasing out the hay ground and mostly needed to maintain woods, a driveway and a building site. The advice that came with it is worth as much as the verdict: swap the finish mower for a brush hog if the work is forestry and trail cutting, a 7-foot box blade makes putting in and maintaining a driveway straightforward, pallet forks earn their keep during construction, and four-wheel drive is non-negotiable for mud and logs. One responder added the honest caveat that a skid steer would be the better tool for much of that work, and is also far more expensive. A hobby-farm couple three years into ownership report being pretty happy, rate the loader as extremely useful, and say the frame-mounted backhoe attachment they added gets used a good deal.

The maintenance picture comes largely from one new owner working through a tractor he inherited, and the practical points are the ones another owner gave him: it has a great many grease points and a grease gun is the first purchase, the air filter gets dirty quickly, and the oil is worth changing annually. Mechanically the only breakage reported is a rod that holds the hydraulic arm to the loader, which snapped while the owner was moving dirt. The other recurring issue is electrical rather than structural - one owner chased a battery that would hold a charge overnight only to be flat again after a short run, leaving him unsure whether the battery, starter or charging system was at fault.

What comes up favourably

  • Owners rate it about the right size for mowing and trail maintenance, with one calling 40 horsepower a good middle ground for exactly that work on a largely wooded property.
  • Used examples bundled with implements represent real value - a 2017 machine with 600 hours plus box blade, forks, bucket and finish mower at $25,000 drew agreement from several people that it was a good to great deal.
  • The frame-mounted backhoe attachment is genuinely used rather than ornamental: a hobby-farm couple three years in say they opted for it and it gets plenty of work alongside the loader, which they describe as super useful.
  • It is straightforward enough that an owner with no prior tractor experience has been able to get an inherited one into good running order himself, working through fluids, greasing and belts with advice rather than a dealer.

What comes up as a complaint

  • The loader has a known breakage point: one owner snapped the rod that holds the hydraulic arm to the loader while moving dirt, and had trouble even identifying the part to order it.
  • There are a lot of grease points to keep up with, and owners warn the air filter gets dirty fairly quickly on these, so the servicing burden is higher than the size of the machine suggests.
  • Electrical gremlins are the reported nuisance - one owner had a battery that charged fine, started the tractor, then went flat again after a short run, leaving battery, starter and charging system all as candidates.
  • Owners are candid that for heavy clearing and site work a skid steer would do the job better, and recommend a tractor mainly because the skid steer costs so much more.

Questions worth asking

Is $25,000 a fair price for a used one with implements?
Owners thought so. A 2017 machine with 600 hours that came with a box blade, forks, bucket and a 7-foot finish mower drew responses ranging from a good deal to a great one, on the reasoning that the attachments alone represent serious money. The advice attached was to make sure it is four-wheel drive, which owners treat as non-negotiable for mud and log work, and ideally hydrostatic for ease of use.
What implements should I get for woods and trail work?
Swap the finish mower thinking for a brush hog - owners point out that forestry work, cutting in trails and managing edges wants a rotary cutter rather than a finish mower. A 7-foot box blade is named as what makes putting in and then maintaining a driveway straightforward, and pallet forks come recommended particularly if you are building, since they make unloading deliveries far easier. A frame-mounted backhoe is worth considering; owners who added one report using it regularly.
What does looking after one involve?
More greasing than most owners expect. The advice given to one new owner was to buy a grease gun and work through every grease point, because there are a great many of them, and to watch the air filter since it gets dirty quickly. Annual oil changes are the norm among owners, and one notes the related model has two oil drain plugs rather than one, so it is worth checking yours before you assume the sump is empty.

Summarised from public owner discussion, not from testing. Nothing here was measured by this site, and a report that recurs is not the same as a defect rate.
